Acme Double Camber Roof Tile
Natural clay, machine made, plain tile, featuring a double camber (longitudinal & latitudinal). The stunning double camber makes this a superb option when a classic clay plain tile appearance is required, at a fraction of the cost of handmade clay plain tiles. The Burnt Flame and antique colours feature a slightly weathered look and is an excellent choice when trying to match in with older environments.
Product Variants
Antique

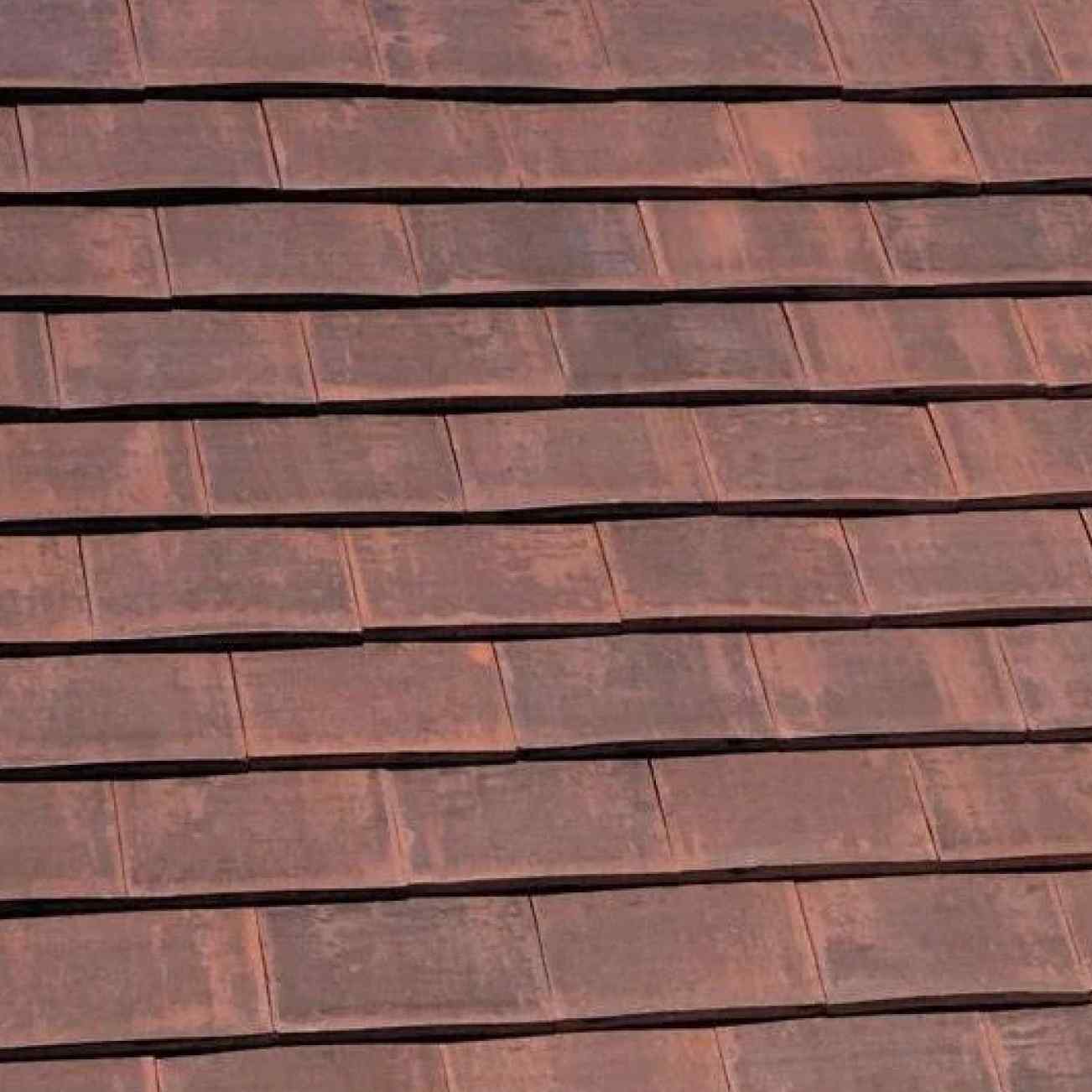

Burnt Flame

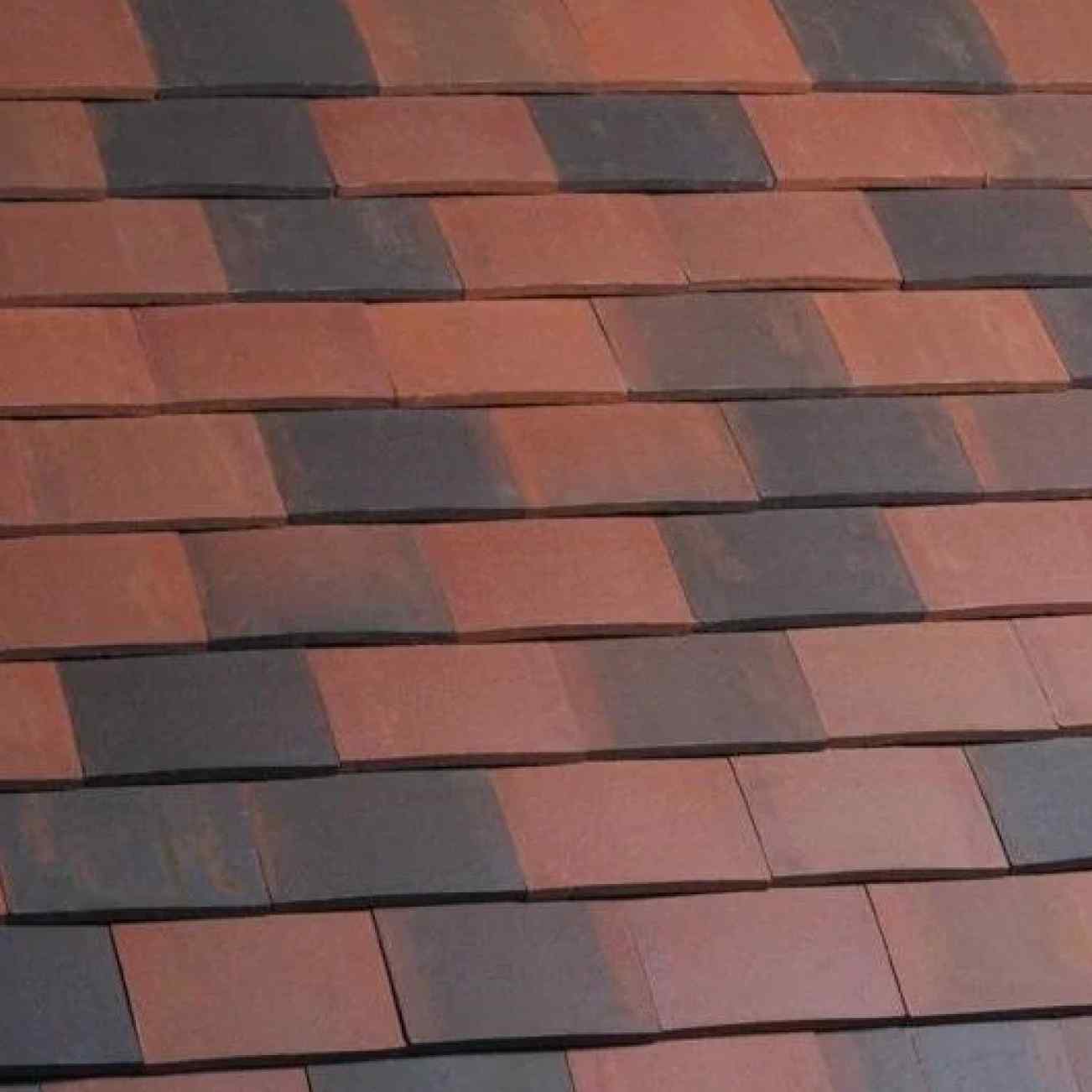

Dark Brindle

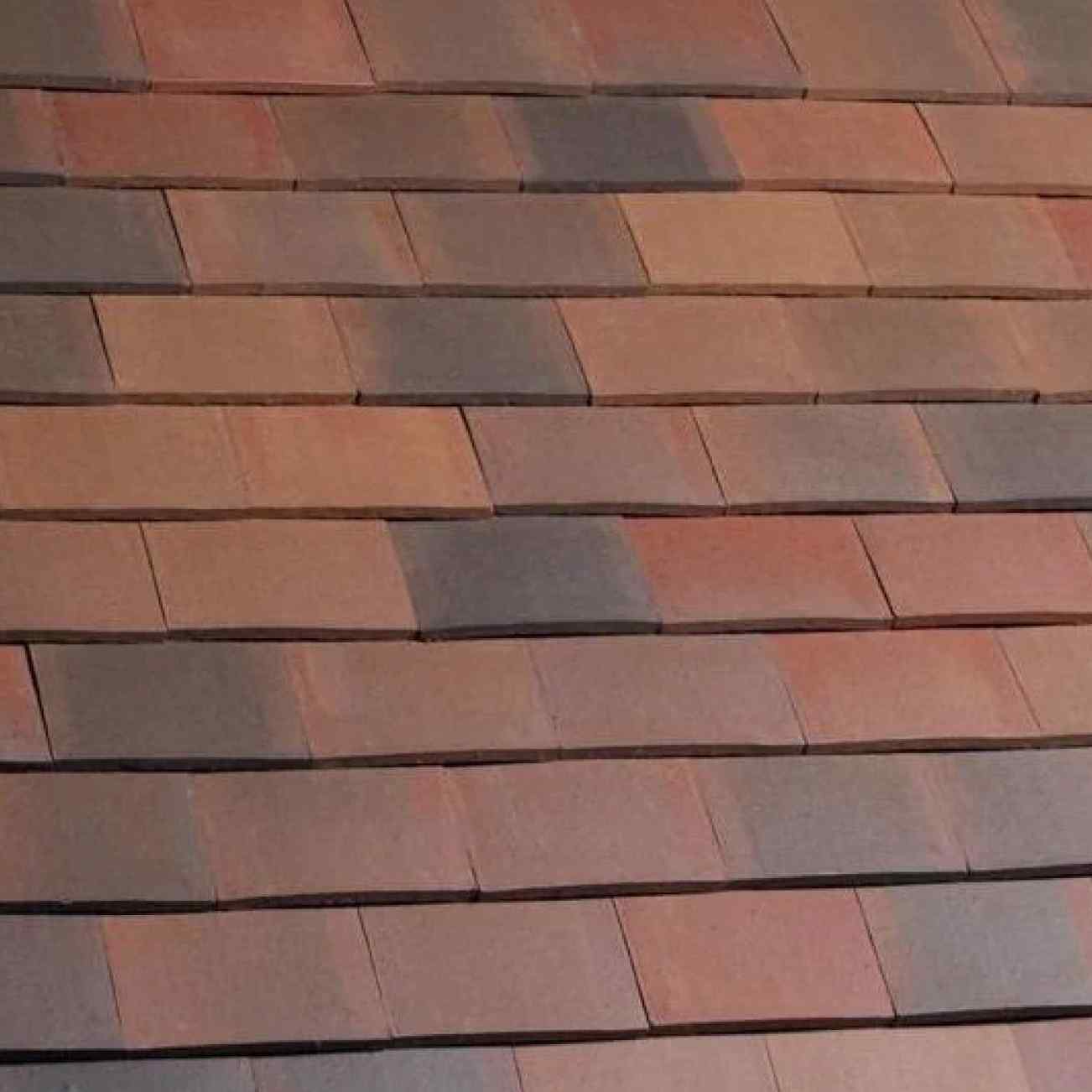

Smooth Brindle
Product Technical Data:
| Size of tile: | 265mm x 165mm |
| Minimum pitch:* | 35° |
| Maximum pitch: | 90° |
| Minimum headlap: | 65mm (roof), 35mm (vertical) |
| Maximum gauge: | 100mm (roof), 115mm (vertical) |
| Tile thickness: | 11mm (nominal) |
| Cover width: | 165mm (nominal) |
| Covering capacity (net): | 60 tiles/m2 at 100mm gauge (roof), 53 tiles/m2 at 115mm gauge (vertical) |
| Weight of tiling (approx.): | 64kg/m2 (0.72 kN/m2) at 100mm gauge (roof), 56kg/m2 (0.57 kN/m2) at 115mm gauge (vertical) |
| Battens required (net): | 10.0 lin.m/m2 at 100mm gauge (roof), 8.7 lin.m/m2 at 115mm gauge (vertical) |
| Batten size recommended: | 38mm x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534) |
| Tile nails: | 38mm x 2.65mm |
| Authority: | BS EN 1304 |
