Mendip Roof Tile
The Mendip roof tile has a double pantile design with a slight curve in the profile to give a visually pleasing appearance. The Marley Mendip is an ideal roof tile for low pitch extensions, new builds and home renovations. The Marley Mendip, is a concrete tile, with elegant flowing lines, instant visual appeal and exceptional strength. A major bonus of the Mendip, is its ability to perform at roof pitches as low as 15°.
Product Variants

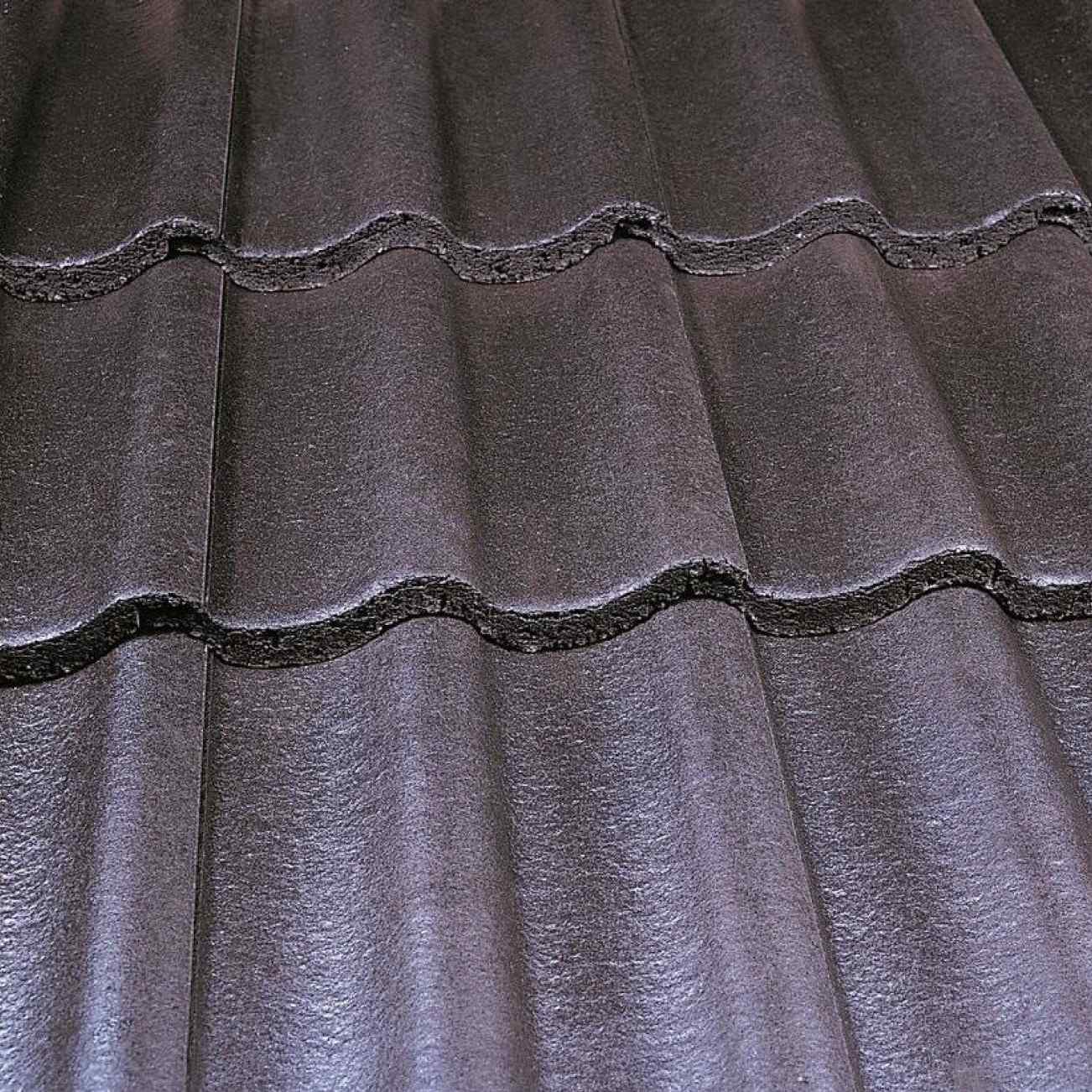

Anthracite

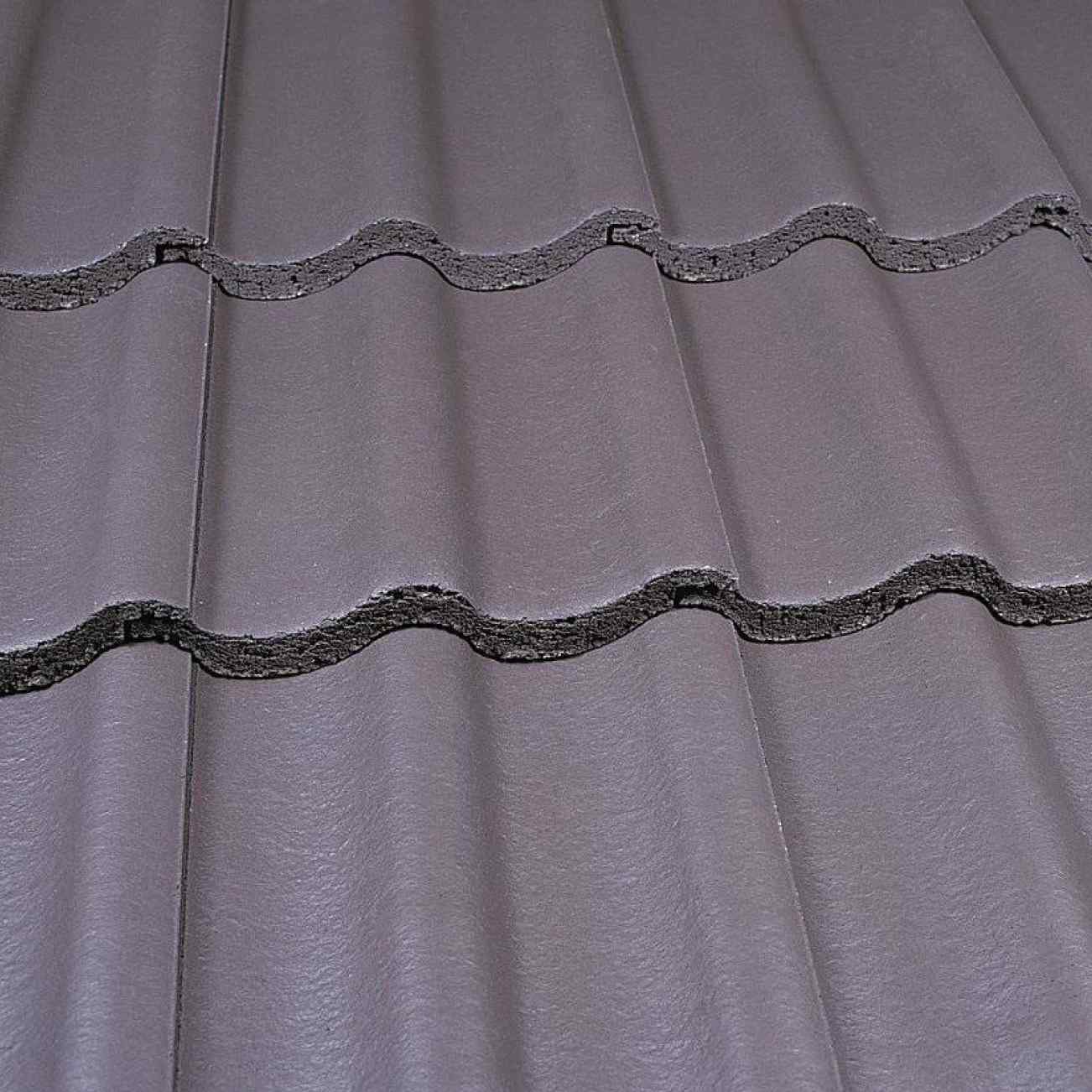

Smooth Grey

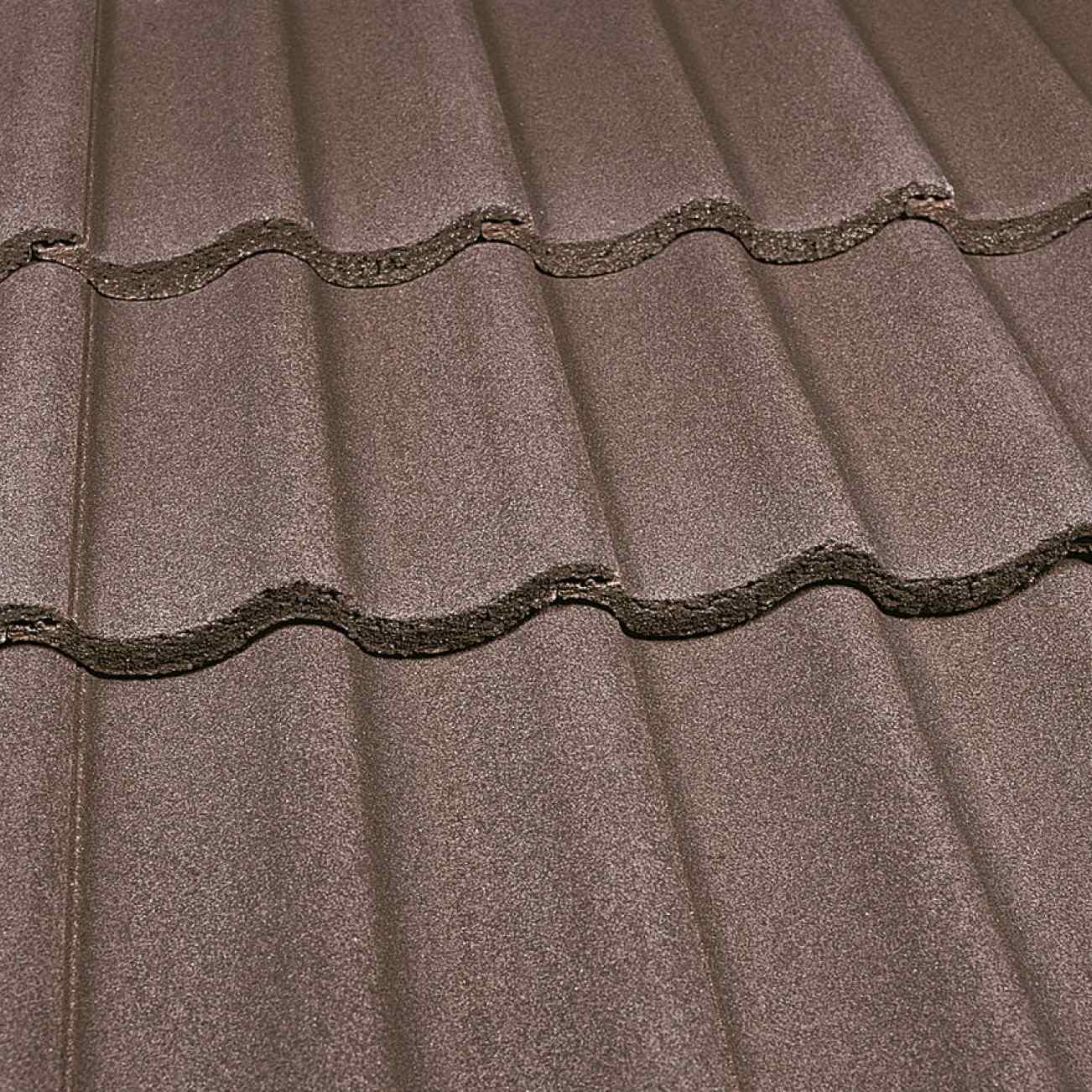

Antique Brown

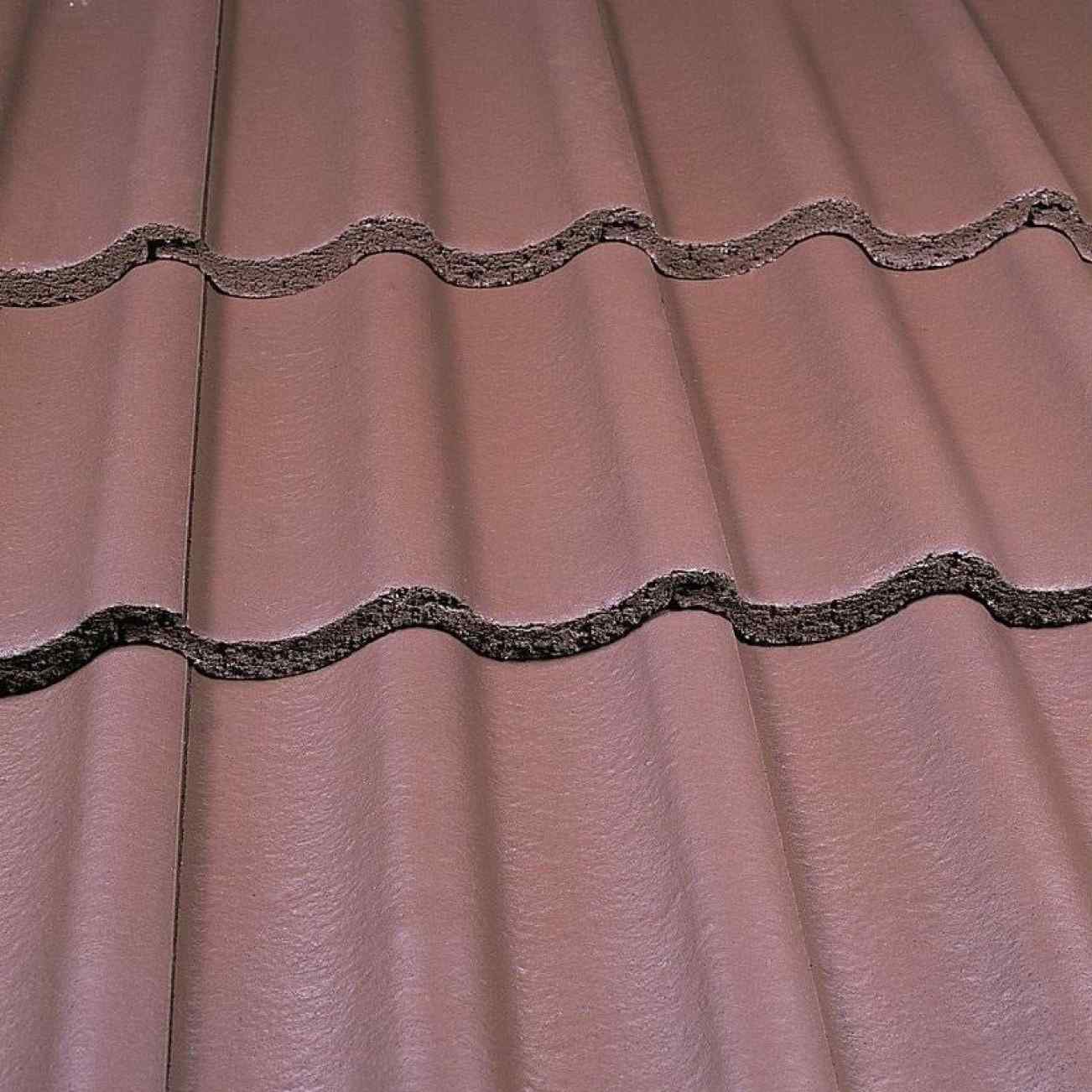

Smooth Brown
Dark Red

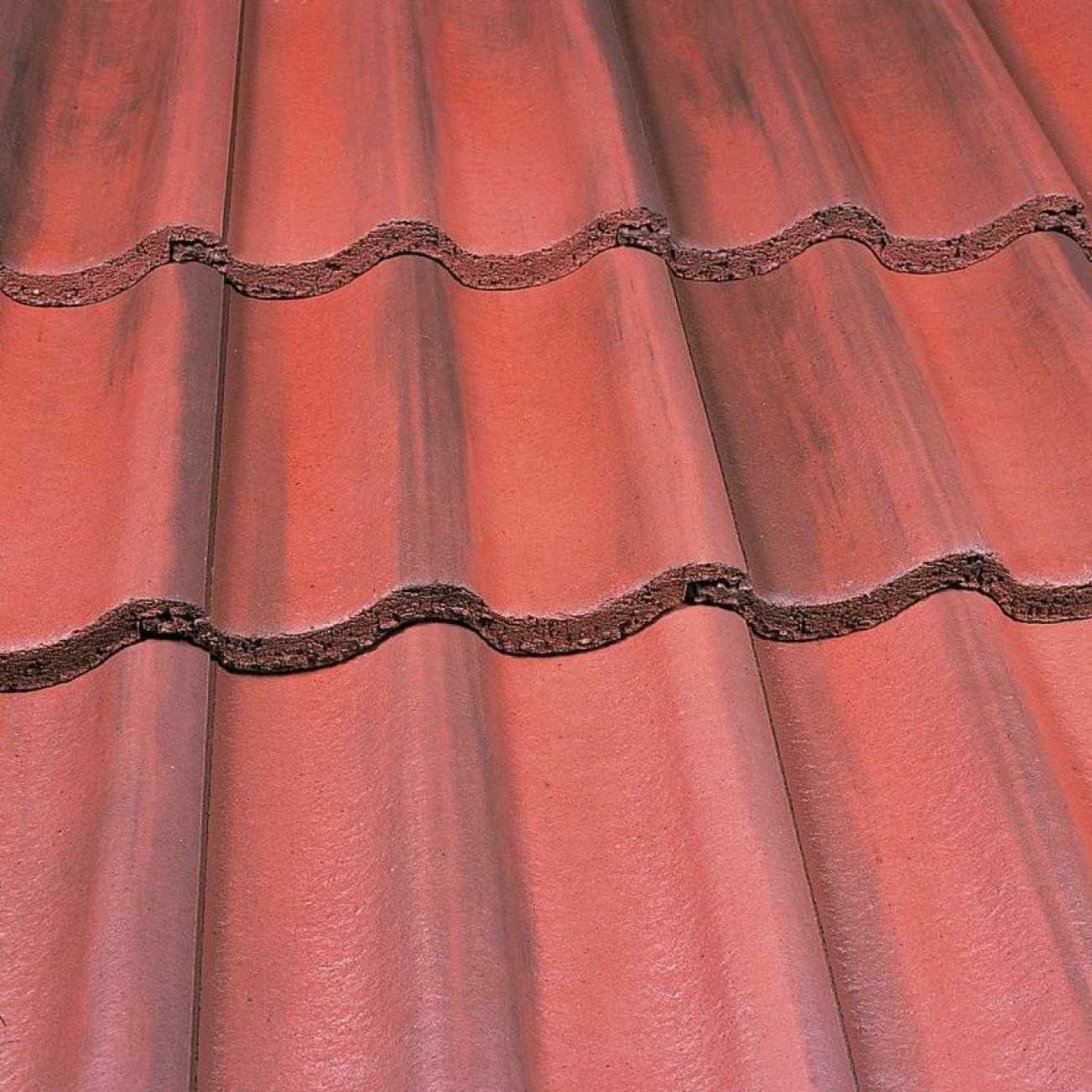

Old English Dark Red

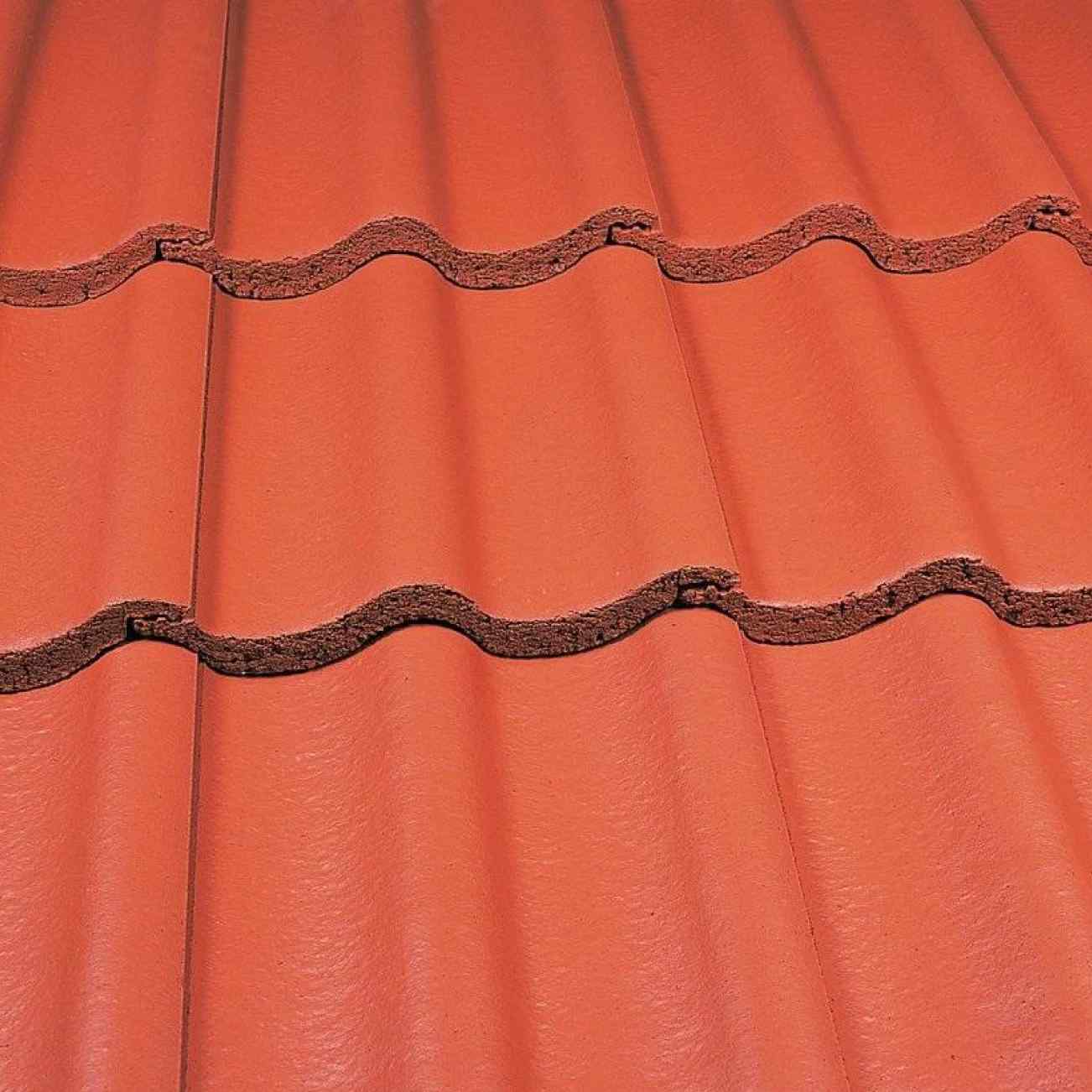

Mosborough Red
Product Technical Data:
| Size of tile: | 420mm x 330mm |
| Minimum pitch (smooth):* | 17.5° Smooth (75mm headlap), 15° Smooth (100mm headlap) |
| Minimum pitch (granular):* | 30° Granular (75mm headlap), 25° Granular (100mm headlap) |
| Maximum pitch: | 90° |
| Minimum headlap: | 75mm |
| Maximum gauge: | 345mm |
| Body thickness: | 27mm (nominal) |
| Overall depth: | 59mm |
| Cover width: | 298mm (nominal) |
| Handing length: | 397mm (nominal) |
| Covering capacity (net): | 9.7 tiles/m2 at 75mm headlap, 10.5 tiles/m2 at 100mm headlap |
| Weight of tiling (approx.): | 46kg/m2 (0.45 kN/m2) at 75mm headlap, 49kg/m2 (0.48 kN/m2) at 100mm headlap |
| Battens required (net): | 2.9 lin.m/m2 at 75mm headlap, 3.1 lin.m/m2 at 100mm headlap |
| Batten size recommended: | 38mm or 50mm x 25mm for rafters/supports not exceeding 450mm or 600mm centres (fixed to BS 5534) |
| Tile nails: | 70mm x 3.35mm |
| Fixing Clips: | Eaves, verge and tile clips |
| Authority: | BS EN 490 |
